COOLING SYSTEMS

United Power is your reliable partner, providing round-the-clock support services to your cooling system to ensure minimal downtime in the event of an emergency or planned maintenance. United Power provides reliable rental heating, ventilation and air-conditioning (HVAC) equipment that play a critical role in creating the right environment. Besides delivering the right temperature and ventilation, these machines also help to minimise operating cost with its premium energy efficiency level. Due to its non-CFC refrigerant and low sound level capability, they are extremely environmental friendly.

United Power specialists are able to determine the cooling needs according to each project, regardless of location and climate. Combined with the Power Solution expertise, United Power provides a turnkey solution for all temporary power and cooling needs.





APPLICATION

  • Outdoor events - Comfort cooling and Ice circuit ring
  • Cold storage, hospital and retail environment temperature control
  • Chiller water for petrochemical and pharmaceutical industrial plant
  • Cool air for Ship-building and Construction site / office
  • Temperature control in Agriculture & food industries






LIQUID CHILLER

United Power Liquid Chiller is engineered to provide comfort cooling solutions for all temporary and emergency needs. The fleet of chillers come in a range of cooling capacities, which can be used individually or paralleled in various configurations to meet the most challenging requirements...


Read More

AIR HANDLING UNIT

The Air Handling Unit (AHU) extracts, supplies and circulates air from the intended area to provide a comfort cooling environment. This machine can be connected to the existing cold / hot water circuit or to United Power Liquid Chiller for an effective air-conditioning setting in several sectors...


Read More

PACKAGED AIRCON UNIT

United Power Packaged Aircon Unit is capable of covering a wide variety of cooling needs in industries like ship-building, construction sites and agriculture. The powerful yet compact machine has its compressor, fans, coils and air handler, all housed in a single unit...


Read More










LIQUID CHILLER

United Power Liquid Chiller is engineered to provide comfort cooling solutions for all temporary and emergency needs. The fleet of chillers come in a range of cooling capacities, which can be used individually or paralleled in various configurations to meet the most challenging requirements.

Our cooling specialists will access the site for all technical aspects to provide a tailored solution packed with the most applicable chiller capacity.

  • Designed to work in tough settings
  • Easy to operate with flexible controls and settings
  • Environmentally friendly with non-CFC refrigerant usage
  • Capable of temperature down to -20℃
  • Available in a range of sizes starting from 10 tonnes





LIQUID CHILLER SPECIFICATIONS *

Capacity Dimensions (m) Weight (kg) Fluid leaving
Temp ( ℃ )
Design Flowrate (m3/h) OperatingVoltage (V) Frequency (Hz)
kW RT Length Width Height
400 113 3 2.5 2.6 5000 6 72 380-480V / 3Ph 50 / 60
600 170 6 2.5 2.6 7250 6 93 380-480V / 3Ph 50 / 60
800 227 6 2.5 2.6 9550 6 113 380-480V / 3Ph 50 / 60

* Specifications are subject to change without prior notice

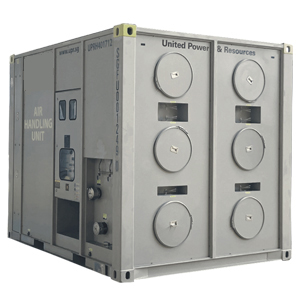

AIR HANDLING UNIT

The Air Handling Unit (AHU) extracts, supplies and circulates air from the intended area to provide a comfort cooling environment. This machine can be connected to the existing cold / hot water circuit or to United Power Liquid Chiller for an effective air-conditioning setting in several sectors, such as large-scale outdoor events, workspaces.

All relevant accessories such as circular air ducting, hoses and cabling required for the set-up will be provided and installed appropriately.





AIR HANDLING UNIT SPECIFICATIONS *

Capacity Dimensions (m) Weight (kg) Design Flowrate (m3/h) OperatingVoltage (V) Frequency (Hz)
kW RT Length Width Height
100 28 2.5 1.8 1.5 820 10000 380-480V / 3Ph 50/60
200 57 2.7 2.3 2.1 2230 20000 380-480V / 3Ph 50/60
400 113 3 2.4 2.6 2900 40000 380-480V / 3Ph 50/60

* Specifications are subject to change without prior notice










PACKAGED AIRCON UNIT

United Power Packaged Aircon Unit is capable of covering a wide variety of cooling needs in industries like ship-building, construction sites and agriculture.

The powerful yet compact machine has its compressor, fans, coils and air handler, all housed in a single unit and is the recommended choice for sites with space constraint. Engineered as a dual-package system, it is able to provide not only cold but hot air as well.

This machine runs at industry-leading soundproofing level, making them perfect for usage in tents and marquees without disturbing the event.

  • Remote Start / Stop capability
  • Remote common fault alarm indicator
  • Intuitive Control Panel Interface
  • Small operating footprint for space optimization





PACKAGED AIRCON UNIT SPECIFICATIONS *

Capacity Dimensions (m) Weight (kg) Design Flowrate (m3/h) OperatingVoltage (V) Frequency (Hz)
kW RT Length Width Height
50 14 2.3 2.2 2.1 1700 9000 380-480V / 3Ph 50 / 60
100 28 2.9 2.3 2.3 2200 20000 380-480V / 3Ph 50 / 60

* Specifications are subject to change without prior notice
